Air Powered Start-up System

Category: Diesel Engine Pollution Control Technology

Applicant: Shanghai ShenZhou Vehicle Energy Saving & Environmental Protection Co., Ltd.

Description:

◎ The Air Powered Start-up System employ hydraulic drive mechanism to recover kinetic energy at deceleration and while idle. The energy is stored as compressed nitrogen in the energy accumulator at maximum pressure of 28MPa. The hydraulic motor then utilize the energy stored in the accumulator to drive the vehicle.

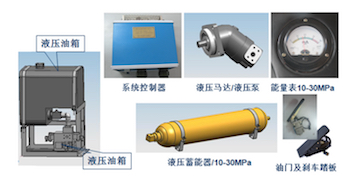

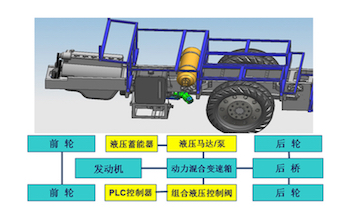

◎ Key components of the Air Powered Start-up System are a specially designed gearbox,hydraulic pump, energy accumulator, hydraulic controller and electronic control unit (ECU).The unique gearbox is capable to output power in hydraulic mode, engine mode and hybrid mode. The gearbox has an auto hold function and is able to provide driving force from the hydraulic system in neutral gear. After the air powered staring, driver can directly shift to higher gear from neutral gear which will reduce their labor intensity.

◎As an independent system, the Air Powered Start-up System can be installed without changing vehicle's original structure. It is suitable for both retrofitting and new vehicle production. The system is compatible for diesel engines, gasoline engines, natural gas engines and even electric motors.

Environmental Features:

◎Fuel saving: 20% (urban bus traffic)

◎Reduce the PM, CO, HC and CO2 emissions by reducing inefficient engine combustion and improving fuel economy.

Financial Features:

◎System cost: 120,000 RMB. Return of investment: About 2 years

◎The system can reduce wear and tear on clutch and brake and thus extend the maintenance interval.

•
•

Ammonia (Solid State) Storage and Delivery System (ASDS)

Category: Diesel Engine Pollution Control Technology

Applicant: Faurecia China.

Description:

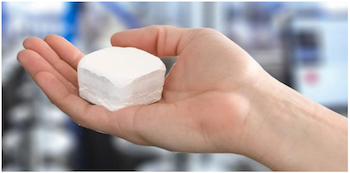

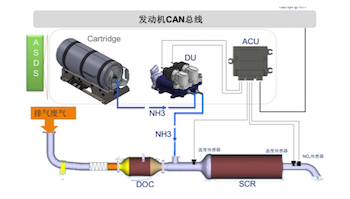

◎Solid state ammonia (NH3) storage system (ASDS) is ammonia generation system for on board selective catalytic reduction (SCR). This technology utilizes solid strontium chloride (SrCl2) to adsorb ammonia. The adsorbed ammonia is stored as solid state clathrate Sr(NH3)8Cl2. The adsorbed ammonia is released under certain conditions to convert NOX in the diesel exhaust to Nitrogen (N2) and water (H2O).

◎The ASDS uses strontium chloride (SrCl2) stored in sealed cartridges. Reverse reaction temperature of solid state clathrate (Sr(NH3)8Cl2) is 55~80 ℃ and ammonia will be released when the cartridge is heated.

◎Main components of ASDS include main cartridges, dosing control unit, control unit and sensors.

Environmental Features:

◎The ASDS has outstanding ammonia generation performance and de-NOx performance especially in low temperature condition. This the next generation de-NOx technology is capable to meet strict emission regulation.

◎Gaseous ammonia mix better with exhaust gas and require less arrangement for exhaust pipeline.

◎It's capable to generate ammonia and control NOX at cold start and low speed conditions.

◎There is no urea crystallization issue for the the ASDS system which improves de-NOX performance.

Financial Features:

◎Less engine temperature control requirements than urea system, better fuel economy.

◎Avoid urea crystallization issue, less maintenance cost.

Application Status:

Two buses with ASDS systems have run over 50,000km in Anting, Shanghai (Anting Line 2).

ASDS has been applied in public transport system in Suwon South Korea, London UK andCopenhagen Denmark. Over 300 city buses in Copenhagen are benefiting from ASDS system.

•
•

Slurry Atomization and Vortex Flow Field Technology for the Intensive Desulphurization of Flue Gas

Category: Ultra-low emission* control for coal-fired power plants

Applicant: Beijing Chutian Ruiping Environmental Technology Co. Ltd

South China University of Technology

Description:

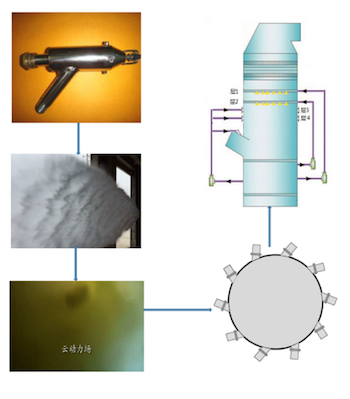

◎Patented technology of slurry atomization, vortex flow field and multiple conic section arrangements that creates an atomized vortex field within the desulfurization tower. This system not only solve the problem of absorbent heterogeneity in the traditional absorption tower, but also induces complete mixing of the flue gas with the desulfurizing agent, thus accomplishing intensive desulfurization.

◎The application of this technology decreases the fluid/gas ratio and desulfurizer reaction cycle multiplier, and therefore decreases energy consumption of the system, specifically the electricity consumption of the desulfurizer pump and ventilator.

◎Uses proprietary abrasion and clogging resistant technology to ensure long-term, stable and efficient operation of the desulfurization tower.

◎Easy implementation allows a short construction period of about 20 days.

Environmental Features:

◎Improve flue gas SO2 removal rate. Tail gas SO2 concentration will be less than 30 mg/m3 after the process.

◎Keep environmental potential for the power plant those burning high sulfur coal.

Financial Features:

Construction investment varies depending on existing conditions, compared to traditional spray desulfurization methods, energy costs are reduced by 20% and construction costs are vastly lower.

Implementation status:

Part of project caseses: Huaneng Baotou No. 1 Thermal Power Plant 300MW Henan Yuneng Tongli Power Plant Generator 1 and 2 300MW Jiangsu Jiangyin Ligang Generator 5 660MW

•

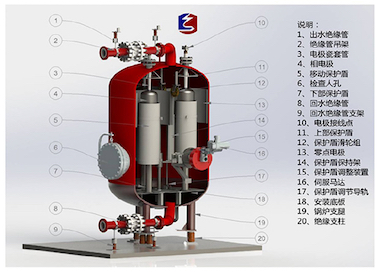

Zeta Electrode Boiler

Category: Coal combustion emission control & clean energy substitutes (non-power sector)

Applicant: Beijing Zeta Energy Technology Corp.

Description:

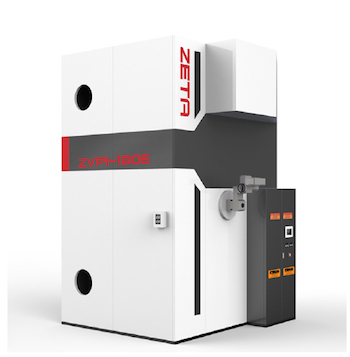

◎Electrode boiler is an electric boiler product using electrode heating method. Electrode heating applies voltage to the electrolyte solution between the electrodes. Ions move in the electric field and generates heat. Zeta Electrode Boiler utilize the electrode heating method, use water as heating element to produce hot water.

◎6-20kV three-phase high-voltage can be directly applied to the electrode hot water boiler, eliminating the need of low-voltage power distribution equipment and reduces power distribution losses.

◎Zeta Electrode Boiler has high power and high efficiency for single unit. The boiler is able to start and stop at any time. Continuous output power control is achieved by regulating the emerging surface area of the electrode. Secondary pollution is low because of the electrolyte used is common chemicals and the closed loop design of the boiler.

◎ Zeta Electrode Boiler combined with thermal storage system is an effective method of peak load shifting and off-peak wind power utilization for grid. There are no emissions when the boiler is in operation. It is alternative heating solution in strict air pollutants control area.

Environmental Features:

◎No emission when the boiler is in operation.

◎Thermal efficiency of electrode boiler is over 99%.

Financial Features:

◎The investment of high-voltage electrode boiler with thermal storage is 700-1000 RMB/ kW.

◎There will be commercial value for the electrode boiler when electricity price is 0.15-0.3 RMB/kW·h.

Implementation Status:

There are implementations in city of Rizhao, Xinjiang, Daban City, Baotou, Da'an City, Dalian and etc since 2011 in China.

•
•

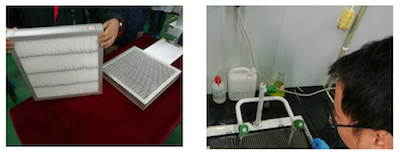

Intermetallic Compound Paper Membrane Air Purification

Category: Indoor air quality monitoring and air purification

Applicant: Intermet Technology Chengdu Co., Ltd.

Description:

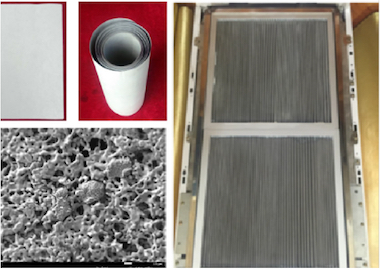

◎Intermetallic compound paper membrane is an advanced porous material, in which the chemical bonds between the atoms of intermetallic compound consist of both covalent and metallic bonds. The porous paper membrane has a large number of fine pores with a characteristic of even distribution. Furthermore, the new product has specific functions, such as filtering, inhibiting germs and catalyzing characteristic.

◎The folding angle (R ≥ 3mm) and pitch ( ≥ 5mm) of the intermetallic compound paper membrane can be adjusted, which can be used to produce a new air purifying filter. The PM2.5 in the air can be intercepted by an efficient physical purification way. The purification efficiency can be achieved at level H13.

◎The membrane can be washed and reused and is also recycalble.

Technical Features:

◎The methods to filter out the PM2.5 using intermetallic compound paper membrane can be direct interception, bridging interception, inertia collision interception and such kind of classical physical process interception.

◎◎ Compared with traditional air filter, the efficiency of wind flux and wind drag of the newmaterial filter can remain the same level, on the basis of several test results.Purifying efficiency of particulate matter (one-off): 99.71%; Degerming efficiency of Staphylococcus albus: 99%; Degerming efficiency of Escherichia Coli: 99%; Antibacterial ratio of Staphylococcus aureus: 99%; Antibacterial ratio of Escherichia Coli: 99%

Financial Features:

◎According to recycle function of production and environment element of life cycle, also considering the economic benefits, it can be concluded that the intermetallic compound paper membrane air purification technology has an advantage in market compared with the traditional air purifying filter.

Application Status:

◎ The technology can be used in both industrial de-dusting and home air purifying.

•
•

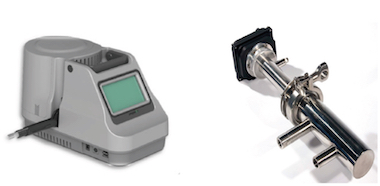

Escaping Current ParticleMeasurementTechnology

Category: Indoor air quality monitoring and air purification

Applicant: Pegasor

Description:

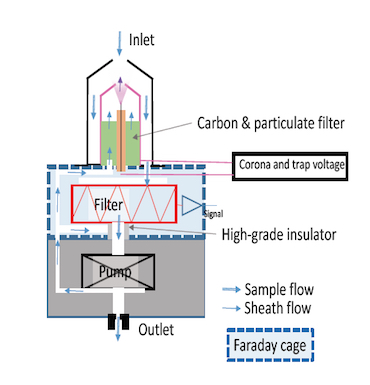

◎The Pegasor sensor technology is based on measuring of electrical charge carried by particles. The electrical current escaping from the sensor with the charged particles can be measured and this gives a direct, fast, real-time measurement of the particle concentration.

Sensitive to particle size 10nm-2.5μm particle, high concentration range without dilution.

◎Dynamic trap function, self-calibration, No drifting during service period.

◎Proven Pegasor technology and experience can be applied for indoor, outdoor, stack and engine emission particle monitoring.

Financial Features:

◎Price: 9000-50 000 Euros (depending on different products and configurations)

◎ Less Maintenance: Filter replacement interval is 12 months, Cost 500 EUR.

◎ Designed lifetime: 10 years

Implementation Status:

◎The Pegasor sensor technology has been implemented in public buildings (office building, school, airport, hospital, etc. ) as well as test lab, monitor station and engine emission monitor station.

•
•
